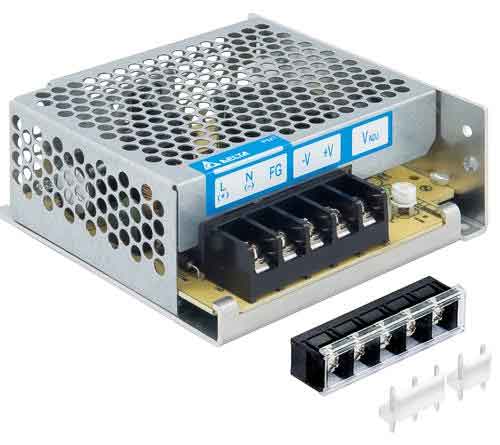

DELTA台达平板型工业电源PMT-15V50W1AG

DELTA台达平板型工业电源PMT-15V50W1AG

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

< 1.10A @ 115Vac, < 0.65A @ 230Vac

MAX 负载效率

85.5% typ. @ 230Vac

涌入电流

45A typ. @ 230Vac

漏电流

< 0.5mA @ 240Vac

输出电流

3.4A

输出电压

15V

输出电压调整范围

13.5-16.5Vdc

输出功率

51W

线电压调整率

< 0.5% typ. (@ 115Vac & 230Vac input, MAX input)

负载调整率

< 0.5% typ. (@ 115Vac & 230Vac input, 0-MAX input)

纹波电压

< 150mVpp @ 25°C to 50°C,

< 300mVpp @ -10°C to 0°C

开机时间

1,200ms typ.@ 115Vac,

500ms typ. @ 230Vac (MAX load)

保持时间

20ms typ. @ 115Vac, 100ms typ. @ 230Vac (MAX load)

动态回应

± 10% (1000mVp-p)@ 0-MAX load (Slew Rate: 0.1A/µS)

电容性负载启动

8,000μF Max

升压时间

< 30ms @ 115Vac & 230Vac (MAX load)
