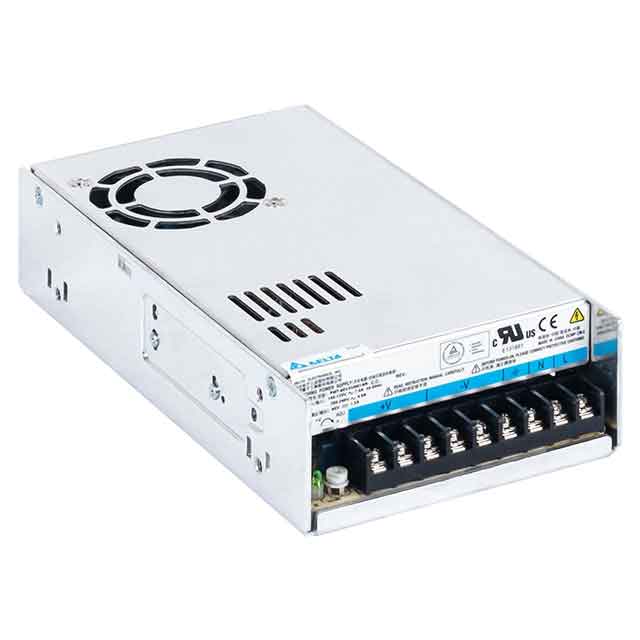

DELTA台达平板型工业电源PMT-48V350W1AR
输出电压 48V 输出功率 350W 输出电流 7.3A 输入电压范围 90-132Vac, 180-264Vac (Selectable by Switch) 尺寸 (L x W x H) 215 x 115 x 50 mm 8.46” x 4.53” x 1.97” 重量 0.83 kg (1.83 lb)
产品参数
交流输入电压选择开关
铝制外壳和底盘全方位防腐蚀
内置自动风扇控速电路
MTBF > 700,000 hrs Telcordia SR-332
短路 / 过压 / 过负载 / 过温保护
产品详情
DELTA台达平板型工业电源PMT-48V350W1AR
| 额定输入电压100-120Vac, 200-240Vac (Selectable by Switch) |
| 输入电压范围90-132Vac, 180-264Vac (Selectable by Switch) |
| 额定输入频率50-60Hz |
| 输入频率范围47-63Hz |
| 输入电流7.00A typ. @115Vac, 4.00A typ. @ 230Vac |
| MAX 负载效率87.5% typ. @ 230Vac |
| 涌入电流40A typ. @ 115Vac, 60A typ. @ 230Vac |
| 漏电流< 3.5mA @ 240Vac |
| 输出电流7.3A |
| 输出电压48V |
| 输出电压调整范围43.2-52.8Vdc |
| 输出功率350W |
| 线电压调整率± 0.5% typ. |
| 负载调整率± 1% typ. |
| 纹波电压< 240mVpp |
| 开机时间< 1000ms @ nominal input (MAX load) |
| 保持时间16ms typ. @ 115Vac, 20ms typ. @ 230Vac (MAX load) |
| 动态回应± 5% @ 10-50% load and 50%-MAX load |
| 电容性负载启动8,000μF Max |
| 升压时间< 50ms @ nominal input (MAX load) |
