POSENSOR IXTHUS(英国PI)电子尺直线位移传感器PZ-12-S-125

POSENSOR IXTHUS英国PI电子尺PZ-12-S-125直线位移传感器高精度微型电阻尺参数介绍

POSENSOR,IXTHUS,英国PI,PI,电子尺,直线位移传感器,PZ-12-S-125,电阻尺,PZ12S-125

核心词：POSENSOR IXTHUS、英国PI电子尺、PZ-12-S-125、直线位移传感器、微型拉杆位移传感器、注塑机电子尺125mm

在工业自动化精密测控领域，微型化、高稳定、高重复精度的位移检测设备是小型精密设备、模具机械、智能工装的核心配件。POSENSOR IXTHUS（英国PI）PZ-12-S-125直线位移传感器是PZ12系列经典微型拉杆式电子尺，专为狭小安装空间、高精度位移测量场景打造，凭借原装进口工艺、稳定的信号输出与耐用的机械结构，广泛应用于注塑、压铸、木工机械、精密检测台架等工业场景，成为中小型设备位移定位的优选传感器。

一、产品基础概述（PZ-12-S-125）

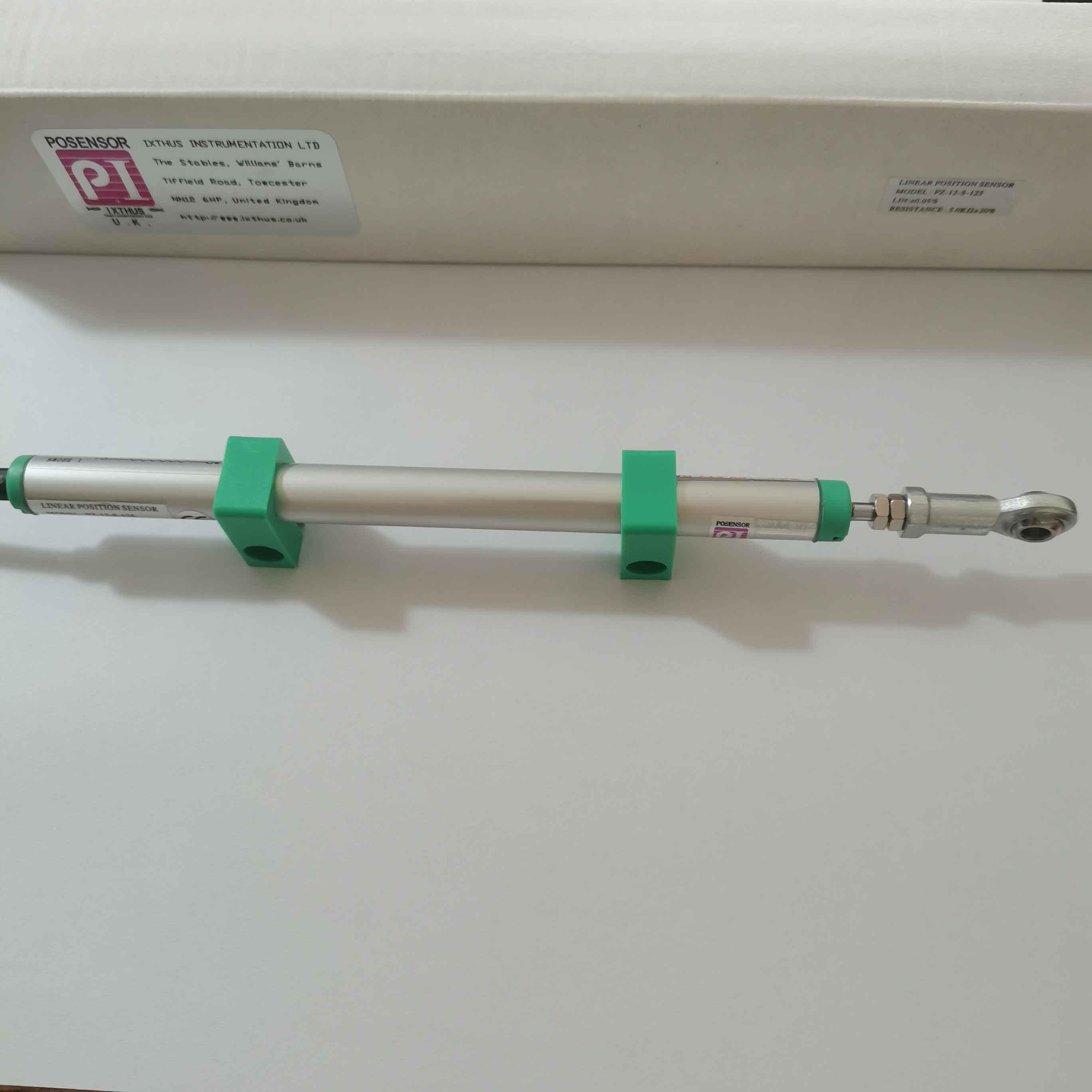

PZ-12-S-125是英国PI（POSENSOR IXTHUS）推出的125mm有效行程微型圆柱型直线位移传感器，属于绝对式电阻位移电子尺，无需归零校准，通电即可实时读取位移数据，响应速度快、数据无漂移。

该型号命名具备清晰的规格定义：PZ12代表1/2英寸标准圆柱微型壳体，S为标准支架安装款，125对应有效测量行程125mm，适配中小型机械设备的短行程精密定位需求，区别于常规大尺寸KTC、KPM系列电子尺，体积更小巧、适配性更强。POSENSOR,IXTHUS,英国PI,PI,电子尺,直线位移传感器,PZ-12-S-125,电阻尺,PZ12S-125

二、核心技术参数

PZ-12-S-125依托英国原装双重修刻电阻轨道技术，保障高精度测量性能，核心参数适配工业严苛工况，具体规格如下：

• 有效测量行程：125mm
• 产品壳体规格：1/2英寸圆柱铝合金阳极氧化外壳，防锈抗腐蚀
• 测量方式：绝对式接触测量，无需重复校准，断电数据不丢失
• 重复定位精度：±0.01mm，满足精密设备微米级定位需求
• 运行阻力：≤0.5N，推拉顺滑，无卡顿、无机械滞后
• 位移速度：≤10m/s，适配高频往复运动工况
• 防护等级：标配IP60，可选升级IP65，防尘防溅水，适配车间潮湿、多粉尘环境
• 工作电流：电刷电流≤1mA，功耗低、发热小
• 抗振动性能：5-2000Hz广谱抗振，设备运行无信号干扰
• 输出信号：标准电阻线性输出，信号稳定，适配各类工控PLC、仪表系统

三、产品核心优势

1. 微型紧凑设计，适配狭小安装空间

区别于传统拉杆电子尺的大体积设计，PZ-12-S-125采用轻量化圆柱微型结构，机身小巧紧凑，专门解决小型自动化设备、精密工装、微型模具安装空间受限的难题，是小行程位移检测的专用型号。

2. 高精度线性输出，测量误差低

传感器采用英国PI专属双重修刻电阻轨道技术，搭配多指耐磨电刷结构，有效提升电阻轨道贴合度，杜绝信号跳变、线性偏差问题。全程线性误差小，重复测量一致性高，彻底解决普通电子尺定位不准、数据漂移的通病。

3. 多方式安装，适配全场景工况

PZ12系列支持三种主流安装方式，其中PZ-12-S标配可调支架安装，同时可兼容自整球接头、法兰安装模式，可根据设备结构、安装角度灵活调整，安装便捷、固定牢固，适配固定式、摆动式、往复式多种运动场景。

4. 坚固耐用，工业抗造稳定性强

机身采用阳极氧化铝合金壳体，耐磨、防锈、抗形变；内部精密密封结构，可抵御车间粉尘、轻微水汽、设备振动干扰，使用寿命远超普通国产微型电子尺，长期连续运行无故障，大幅降低设备维护成本。

5. 免校准即插即用，适配性广

作为绝对式位移传感器，设备开机无需归零校准，通电即可工作，断电后位置数据不丢失，兼容市面上绝大多数注塑机、压铸机、自动化控制系统、PLC信号采集模块，无需改装设备，替换安装简单。

POSENSOR,IXTHUS,英国PI,PI,电子尺,直线位移传感器,PZ-12-S-125,电阻尺,PZ12S-125

四、主流应用场景

POSENSOR IXTHUS PZ-12-S-125凭借小体积、高精度、高稳定性的优势，针对性适配各类短行程精密测控场景：

• 中小型注塑机、立式注塑机射胶、锁模位移检测
• 压铸机、液压设备微小行程位置定位
• 木工机械、玻璃加工设备精密行程测控
• 汽车测试台架、精密工装夹具位移检测
• 自动化流水线、微型智能设备行程反馈
• 科研实验设备、精密检测仪器位移采集

五、安装与使用注意事项

1. 安装时保证传感器拉杆与设备运动方向平行，避免侧向受力，防止电刷磨损、线性偏差；

2. 严禁超125mm有效行程强行拉伸、压缩，避免损坏内部电阻轨道；

3. 潮湿、多粉尘工况可升级IP65防护版本，提升设备适配性；

4. 接线遵循标准弱电接线规范，避免高压干扰，保障信号稳定输出。

六、产品总结

英国POSENSOR IXTHUS PZ-12-S-125直线位移传感器（微型电子尺），是125mm行程微型测控场景的标杆产品。小巧的机身、±0.01mm超高重复精度、稳定的线性输出、多场景适配能力，很好解决小型工业设备精密位移检测难题。相比普通电子尺，其抗振、防尘、耐用性更强，兼容性更广，是工业自动化精密改造、设备配件替换、新机配套的优质选择。POSENSOR,IXTHUS,英国PI,PI,电子尺,直线位移传感器,PZ-12-S-125,电阻尺,PZ12S-125

拓展词：PZ12微型电子尺、125mm直线位移传感器、英国PI位移传感器、注塑机微型电子尺、PZ-12-S替换电子尺

POSENSOR,IXTHUS,英国PI,PI,电子尺,直线位移传感器,PZ-12-S-125,电阻尺,PZ12S-125常用规格型号
