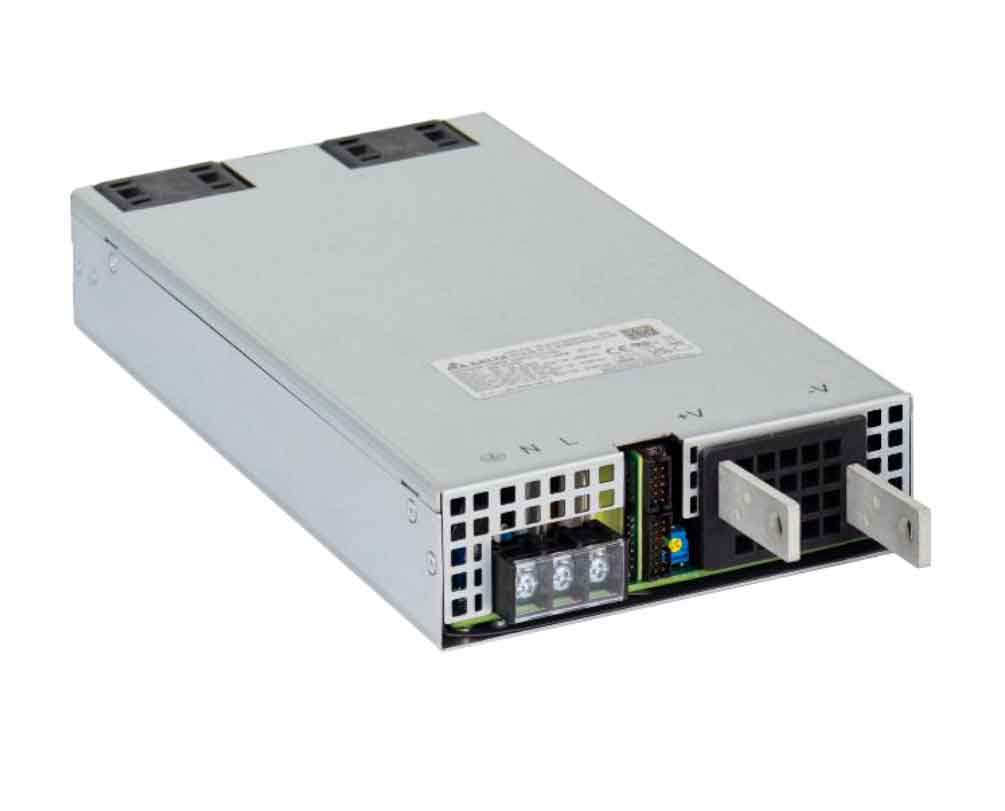

DELTA台达平板型工业电源PMS-12V2K5W1BTD
DELTA台达平板型工业电源PMS-12V2K5W1BTD 输出电压：12V 输出功率：2500W 输出电流：0-208.3A 输入电压范围;85-264 Vac 尺寸 (L x W x H):271 x 127 x 40.5 mm 10.67” x 5.00” x 1.59” 重量:1.95 kg (4.30 lb)
产品参数
Universal AC input voltage
Up to 2,500 Watt in 10.67" x 5" x 1.59" package
Full power up to 50°C ambient
Option for constant current
5 V / 2 A standby output
Active current sharing
Conformal coating
Class B Conducted and Radiated EMI
Remote On/Off and Power Good Signal
Support Ver 1.3 PMBus
Intelligent fan speed control
Optional USB/RS232/RS485 adapter for communication
Compliance to SEMI F47 @ 200Vac
产品详情
DELTA台达平板型工业电源PMS-12V2K5W1BTD
额定输入电压
100-240 Vac
输入电压范围
85-264 Vac
额定输入频率
50-60 Hz
输入频率范围
47-63Hz
输入电流
16 A max.
满负载效率
90.0% typ. @ 230 Vac
输出电流
0-208.3A
输出电压
12V
输出电压调整范围
12-14 Vdc
输出功率
2500W
线电压调整率
±0.5% typ.
负载调整率
±1% typ.
