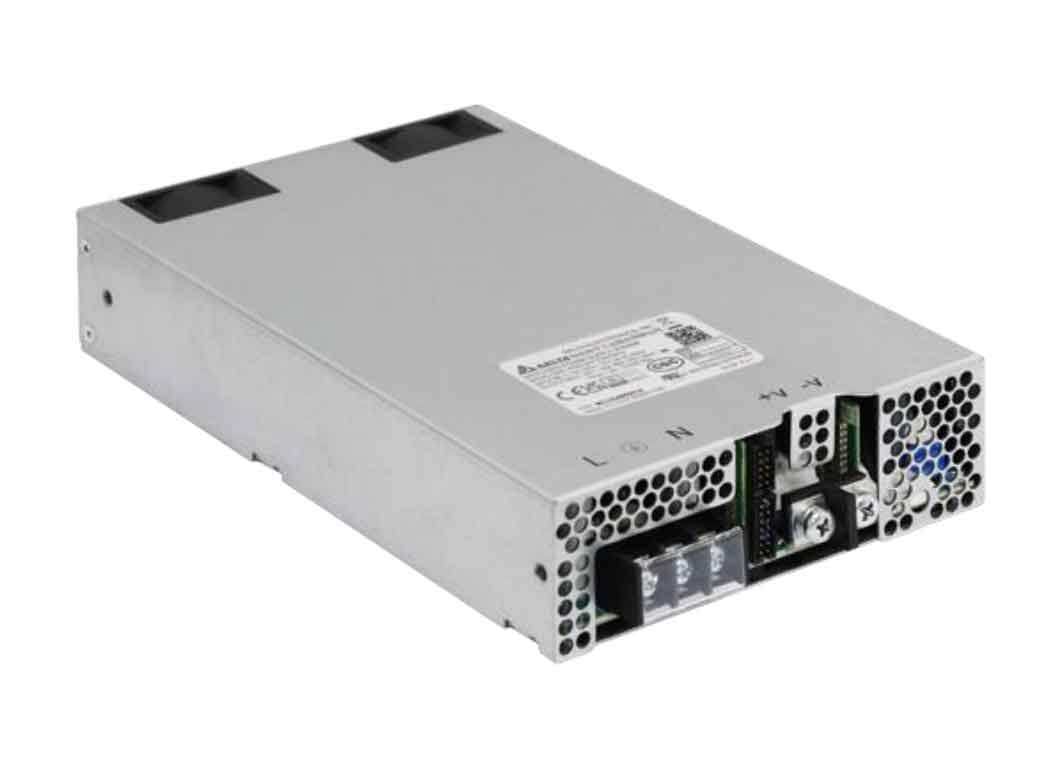

DELTA台达平板型工业电源PMS-24V1K2W1BTD

DELTA台达平板型工业电源PMS-24V1K2W1BTD

DELTA台达平板型工业电源PMS-24V1K2W1BTD,输出电压 24V 输出功率 1200W 输出电流 0-50A 输入电压范围 85-264 Vac 尺寸 (L x W x H) 204 x 127 x 40.5 mm 8.03” x 5.00” x 1.59” 重量 1.5 kg (3.31 lb)

产品参数

Universal AC input voltage Up to 1,200 Watt in 8.03" x 5" x 1.59" package Peak power supported Full power up to 50°C ambient Option for constant current Up to 500 KHrs MTBF 5 V / 2 A standby output Active current sharing Conformal coating Class B Conducted and Radiated EMI Remote On/Off and Power Good Signal PMBus Ver 1.3 supported Intelligent fan speed control Optional USB/RS232/RS485 adapter for communication Compliance to SEMI F47 @ 200Vac
下载产品资料

产品详情

DELTA台达平板型工业电源PMS-24V1K2W1BTD

额定输入电压

100-240 Vac

输入电压范围

85-264 Vac

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

输入电流

15 A max.

max负载效率

93% typ. @ 230 Vac

涌入电流

40 A @ 264 Vac, cold/hot start

功率因数

0.95 @ 115 V/50 Hz, 230 V/50 Hz

漏电流

< 0.3 mA @ 240Vac

功率损耗

6 W typ. @ remote off status

输出电流

0-50A

输出电压

24V

输出电压调整范围

24-28 Vdc

输出功率

1200W

线电压调整率

±0.5%

负载调整率

±1%

纹波电压

< 1% Vrated pk-pk @ rated load

开机时间

2,000 ms with AC turn on

保持时间

16 ms @ 1000 W load, with nominal input range

20 ms @ 800 W load, with nominal input range

动态回应

± 5% @ 115 & 230 Vac input with 0-50% or 50-100% load change

± 10% @ 115 & 230 Vac input with 5-100% load change

电容性负载启动

6,000 uF

升压时间

<50 ms
